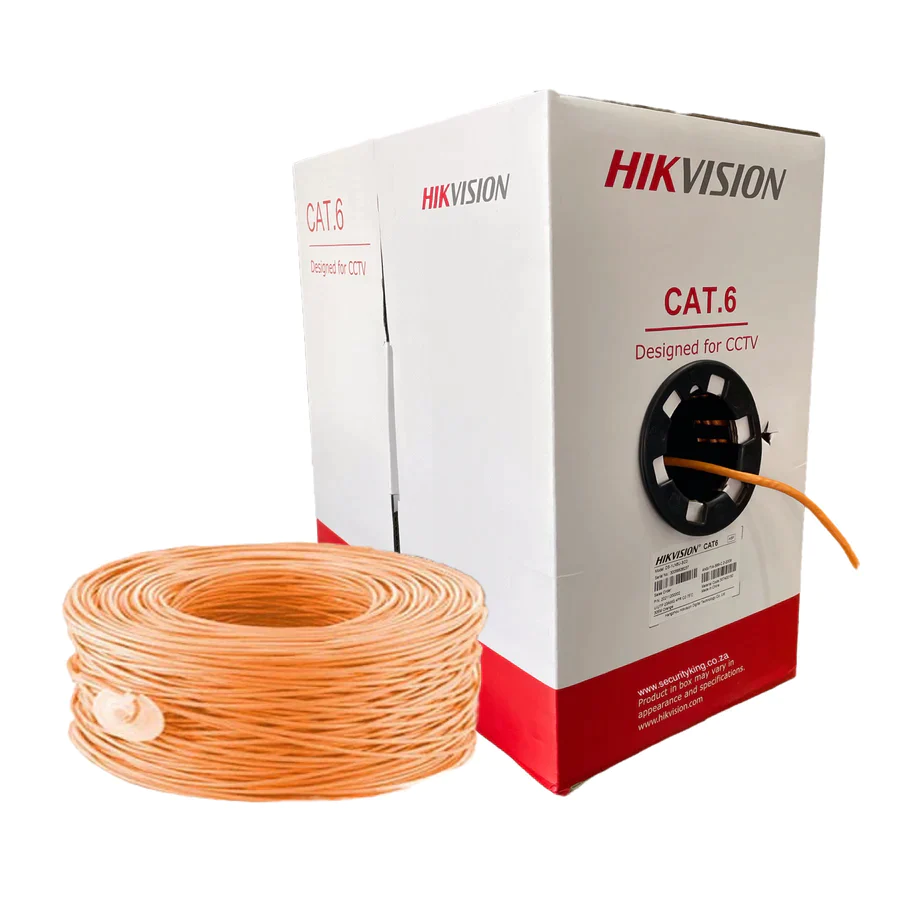

Hikvision DS-1LN6U-SC0 Cat6 Cable

Hikvision DS-1LN6U-SC0 Cat6 Cable delivers reliable networking performance for demanding installations. This high-quality U/UTP Cat6 cable suits modern data networks. It supports Gigabit Ethernet speeds. Professionals choose it for stable connections.

This cable works well in various setups. Use it for office LAN networks. It connects computers, printers, and servers. Install it in CCTV systems for IP cameras. It powers devices via PoE over long distances. The cable fits home networks too. It handles streaming, gaming, and smart devices. Pair it with routers, switches, and access points. It supports structured cabling in buildings. The design ensures low interference. It maintains signal quality up to 100 meters.

Detailed Use Cases and Compatibility

Install Hikvision DS-1LN6U-SC0 Cat6 Cable in commercial environments. It suits surveillance setups with multiple IP cameras. The cable supports PoE loads up to 57V/1A DC. This enables long-distance power delivery. Use it in data centers for reliable links. It works with VoIP phones and video conferencing systems. The cable integrates with existing Cat6 infrastructure. It meets standards for high-speed data transfer. Connect it to network switches and patch panels. It performs well in high-temperature conditions up to 50°C.

The cable excels in permanent installations. It resists damage during pulling. The strong sheath protects against compression. Use it indoors for horizontal cabling. It suits schools, hospitals, and retail spaces. The solid copper design reduces resistance. This improves overall transmission quality.

Explore more networking solutions at Threeways Gadget Hub. Check our range of desktop computers to complete your setup.

Technical Specifications

General

• Model: DS-1LN6U-SC0
• Category: Cat.6
• Structure: U/UTP (Unshielded Twisted Pair)
• Cable Length: 305 ± 1.5 m
• Color: Orange
• Rip-cord: Yes
• Separator: Yes

Conductor

• Material: Solid-Bare Copper (99.95% purity)
• Diameter: 0.55 ± 0.005 mm (23 AWG)

Insulation

• Material: HDPE
• Diameter: 0.98 ± 0.05 mm

Sheath

• Material: PVC
• Thickness: 0.50 ± 0.10 mm
• Diameter: 6.00 ± 0.30 mm

Electrical Characteristics (at 20°C)

• Impedance: 100 ± 15 Ω (≤100 MHz), 100 ± 25 Ω (100-250 MHz)
• Delay Skew: ≤ 45 ns/100 m
• DC Resistance: ≤ 9.38 Ω/100 m
• DC Conductor Resistance Unbalance: ≤ 5.0%

Performance Highlights

• Compliant with ANSI/TIA-568-C.2, ISO/IEC11801, IEC61156
• Verified by Fluke 90-meter permanent link test at 50°C
• Supports Fluke 100-meter channel test with continuous PoE load
• RoHS 2.0 compliant

Environmental

• Ambient Temperature: -20°C to 75°C
• Operating Voltage: 60 V

For related accessories, browse our monitors collection.

Trust-Building with Warranty and Support

At Threeways Gadget Hub, we provide authentic Hikvision products. Customers receive full manufacturer support. The cable comes with standard Hikvision quality assurance. It meets international standards for safety and performance. Our team offers expert advice on installation. We ensure fast delivery across Kenya. Contact us for technical guidance. Enjoy peace of mind with reliable networking solutions.

Learn more about networking standards from TIA Online (high-authority source on cabling standards). Refer to ISO for global standards compliance. Check Fluke Networks for certification testing details.
