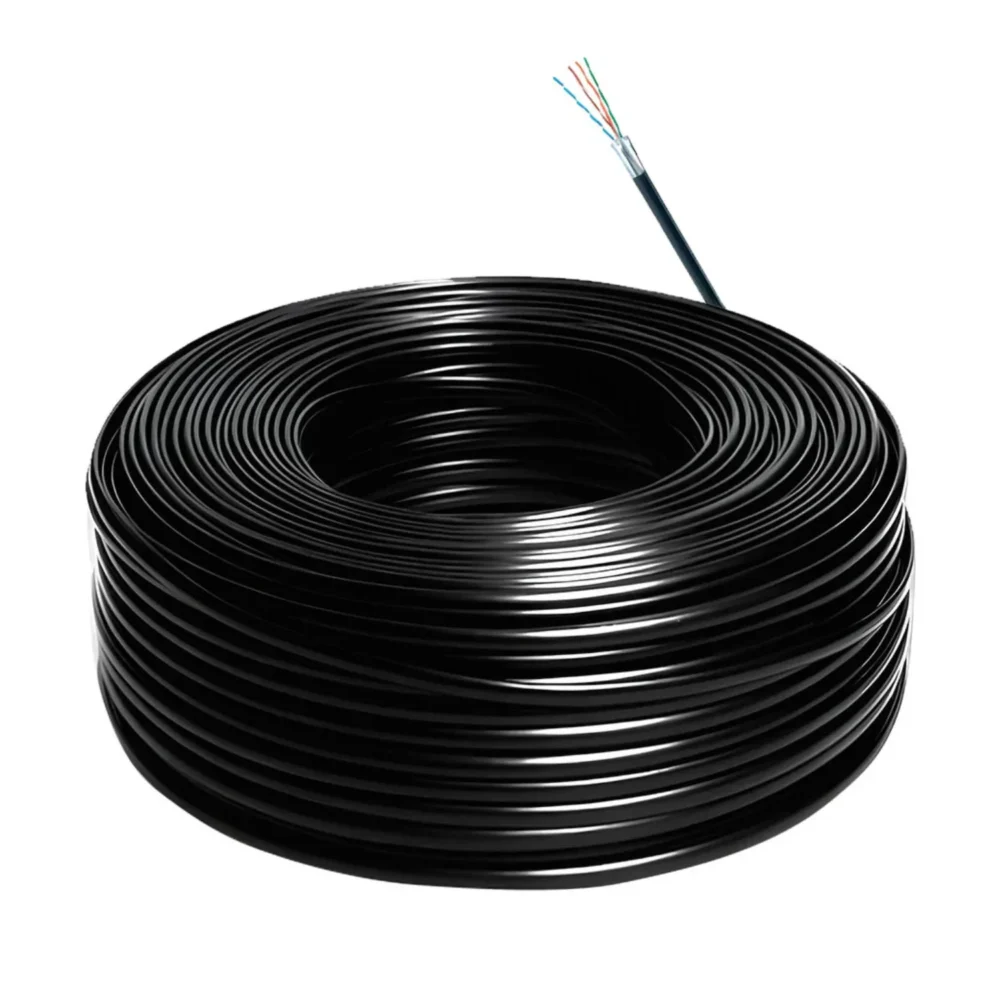

Hikvision DS-1LN6OUSPE(O-STD) Outdoor Cat6 Cable

Hikvision DS-1LN6OUSPE(O-STD) Outdoor Cat6 Cable delivers exceptional durability and performance for demanding external networking installations. Engineered with solid bare copper conductors and a robust polyethylene sheath, this U/UTP Cat6 cable ensures reliable Gigabit Ethernet connectivity even in harsh outdoor conditions. Professionals across Kenya trust this cable for stable, interference-free data transmission and long-distance PoE support in surveillance, campus, and industrial projects.

This outdoor-grade network cable stands up to UV radiation, rain, temperature swings, and physical stress. It maintains signal integrity over the full 100-meter channel length. Installers select it when indoor cables would fail quickly. The black PE jacket provides superior weather resistance compared to standard PVC. Solid 23 AWG copper reduces resistance and supports higher current for PoE devices. Whether you run cable along building exteriors, through conduits, or across open spaces, this product keeps networks running smoothly year after year.

Detailed Use Cases and Compatibility

Hikvision DS-1LN6OUSPE(O-STD) Outdoor Cat6 Cable fits perfectly in perimeter security systems. Connect multiple IP cameras positioned around warehouses, schools, hospitals, parking lots, and residential compounds. The cable carries both high-definition video data and power via PoE up to 57 V / 1 A DC over extended distances. This eliminates the need for separate power cables in remote locations.

Use it for outdoor wireless access points in gardens, sports fields, and public areas. Link outdoor PoE switches to indoor core networks without signal degradation. Deploy the cable in smart city projects, agricultural monitoring stations, and industrial automation setups exposed to dust, moisture, or direct sunlight. It integrates seamlessly with Hikvision NVRs, IP cameras, access controllers, and third-party Cat6-compatible devices such as routers, VoIP phones, and network printers.

The cable supports structured cabling standards for permanent outdoor installations. Its tough construction resists damage during pulling through ducts or along fences. Low delay skew and tight impedance control guarantee consistent performance for real-time applications like video streaming and access control.

For complementary products, visit Threeways Gadget Hub. Explore our full range of desktop computers to build powerful surveillance control rooms.

Technical Specifications

General

• Model: DS-1LN6OUSPE(O-STD)
• Category: Cat.6
• Structure: U/UTP (Unshielded Twisted Pair)
• Usage Scenario: Outdoor
• Fire Resistance: None
• Cable Length: 305 ± 1.5 m (1000 ft reel)
• Outer Jacket Color: Black
• Rip-cord: Included
• Separator: Included

Conductor

• Material: Solid Bare Copper (99.95% purity)
• Diameter: 0.552 ± 0.005 mm (23 AWG)

Insulation

• Material: High-Density Polyethylene (HDPE)
• Diameter: 0.98 ± 0.05 mm

Outer Sheath

• Material: Polyethylene (PE) – UV and weather resistant
• Thickness: 0.50 ± 0.10 mm
• Overall Diameter: 5.90 ± 0.30 mm

Electrical & Transmission Performance

• Characteristic Impedance: 100 ± 15 Ω (1–250 MHz)
• Delay Skew: ≤ 45 ns/100 m
• DC Resistance: ≤ 9.38 Ω/100 m
• DC Conductor Resistance Unbalance: ≤ 5.0%
• Supports continuous PoE load (57 V / 1 A DC)
• Fluke DSX verified: 90 m permanent link @ 50 °C, 100 m channel with PoE

Compliance & Standards

• ANSI/TIA-568.2-D
• ISO/IEC 11801
• IEC 61156
• RoHS 2.0 compliant

Environmental

• Operating Temperature: –20 °C to +75 °C
• Maximum Operating Voltage: 57 V

Browse additional display options in our monitors collection.

Trust-Building with Warranty and Support

Threeways Gadget Hub is an authorized distributor of genuine Hikvision networking products in Kenya. Every roll of Hikvision DS-1LN6OUSPE(O-STD) Outdoor Cat6 Cable comes backed by the manufacturer’s quality guarantee. The cable undergoes rigorous factory testing to meet international performance benchmarks. Our Nairobi-based team offers pre- and post-sale technical support. We provide fast nationwide delivery, expert installation advice, and responsive customer service. Choose this cable with confidence for projects that demand long-lasting reliability in Kenya’s diverse climate.

To learn more about structured cabling standards, refer to the authoritative resources at TIA Online. Global compliance information is available from ISO. Certification testing procedures are explained by Fluke Networks.
