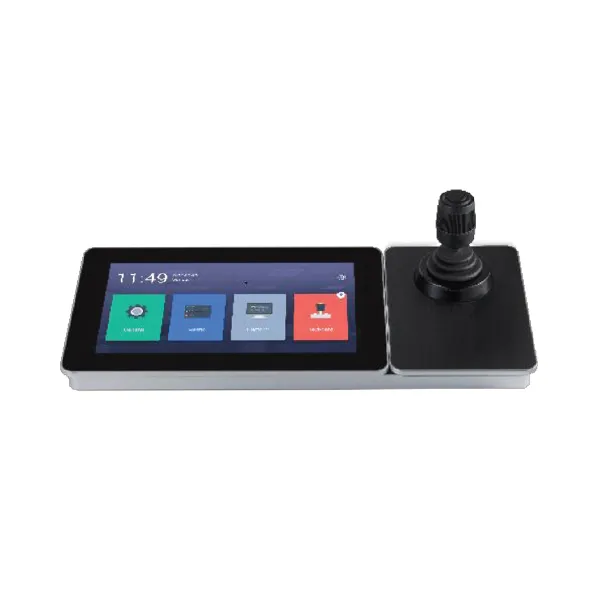

Hikvision DS-1600KI(B) Network Keyboard

Hikvision DS-1600KI(B) Network Keyboard serves as a high-performance control device for surveillance systems. This unit features a built-in touchscreen and detachable joystick. It simplifies PTZ management and live viewing. Operators in Nairobi and Kenya handle complex setups easily. Security teams control multiple devices from one panel. Facilities gain intuitive operation for monitoring tasks.

The keyboard runs on Android for flexible functions. It decodes video streams directly. Touch interface allows quick navigation. Joystick enables precise camera control. Network connectivity supports remote access. The design suits demanding control environments.

Use Cases and Compatibility

This network keyboard fits professional surveillance operations. In command centers, operators manage PTZ cameras across sites. Public security teams switch scenes on video walls. Financial institutions monitor branches remotely. Retail chains oversee store cameras efficiently.

Connect to Hikvision IP cameras, NVRs, DVRs, and speed domes. Support up to 2000 devices via network. Access platforms like HikCentral or iVMS. Control decoders for video wall output. Use for live view, playback, and configuration.

The detachable joystick allows handheld PTZ control. Touchscreen displays live feeds up to 16 divisions. Output to external monitors via HDMI or DVI. Enable recording and snapshots to USB or FTP. Support wired Ethernet and Wi-Fi connections. PoE power simplifies cabling. Operate in control rooms or mobile setups.

For advanced control solutions in Kenya, visit Threeways Gadget Hub. Pair with monitors for extended displays.

Technical Specifications

Display and Input

• Screen: 10.1″ capacitive touchscreen
• Resolution: 1280 × 800
• Joystick: 4-axis with zoom control
• Capture Button: Dedicated for snapshots

Video Decoding

• Formats: H.265+/H.265, H.264+/H.264, MPEG4
• Capability: 1-ch 4K@30fps or 4-ch 1080p@30fps (some sources note 2-ch 1080p)
• Display: Up to 16-division window

Interfaces

• Network: 10M/100M/1000M Ethernet, Wi-Fi supported
• Serial: RS-232, RS-422, RS-485
• USB: 2 × USB 2.0
• Video Output: HDMI, DVI
• Audio: Input/output via 3.5 mm (two-way audio supported)

General

• Power Supply: 12 VDC or PoE
• Power Consumption: ≤15 W
• Working Temperature: -10°C to +55°C (14°F to 131°F)
• Working Humidity: 10% to 90% (non-condensing)
• Dimensions: 404 mm × 163 mm × 180 mm (15.91″ × 6.42″ × 7.09″)
• Net Weight: 1.7 kg (3.75 lb)

The unit supports user accounts with two-level authority. It allows up to 32 users in some configurations. Features include preset/patrol/pattern control, iris/focus adjustments, and light/wiper functions.

Discover desktop computers at Threeways Gadget Hub for integrated control stations.

Reliable Performance and Support

Threeways Gadget Hub delivers genuine Hikvision controllers to Kenyan clients. The Hikvision DS-1600KI(B) Network Keyboard includes a manufacturer warranty against defects. Our Nairobi team provides expert support. Get assistance with setup, network configuration, device addition, and PTZ programming. Access firmware updates promptly. Rely on our experience for efficient surveillance control deployments.

Refer to Hikvision’s keyboard controllers here, display and control products here, and security resources here.

Enhance your operations with printers or tablets from our catalog.
