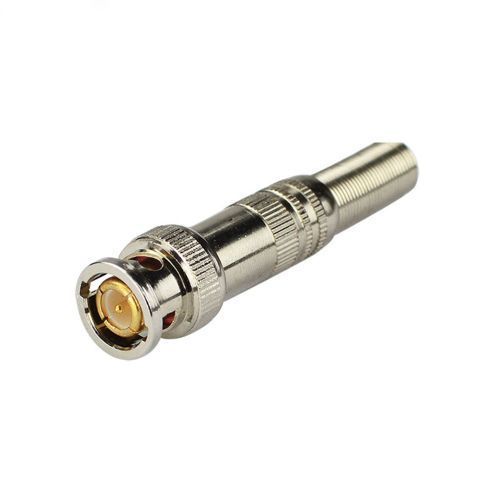

BNC Connector Metal

BNC Connector Metal

BNC Connector Metal provides professional-grade, durable termination for coaxial cables in CCTV and video surveillance systems. This all-metal BNC connector ensures secure, low-loss connections with excellent signal integrity. It suits high-quality analog, HD-TVI, AHD, and HDCVI installations. Installers prefer it for long-term reliability and superior mechanical strength.

This metal BNC connector features a robust nickel-plated or zinc alloy body that resists corrosion and wear. It delivers better shielding against electromagnetic interference compared to plastic versions. The crimp or compression design creates a firm, vibration-resistant connection. Users achieve crisp, noise-free video transmission even in demanding environments.

Detailed Use Cases and Compatibility

BNC Connector Metal excels in professional surveillance setups. Use it to terminate RG59 or RG6 coaxial cables at cameras, DVRs, baluns, and video distributors. Ideal for permanent installations in commercial buildings, warehouses, schools, hospitals, and retail spaces where reliability matters.

The metal construction withstands frequent plugging/unplugging and physical stress better than plastic alternatives. It supports both crimp-style and compression-style terminations for different installation preferences. Pair it with RG59 Cable 100/200/305 Mtr for complete runs. It works seamlessly with Hikvision, HiLook, Dahua, Uniview, and other major coaxial camera brands.

This connector handles 75-ohm impedance matching perfectly, reducing reflections and signal degradation. It supports HD video transmission up to 1080p and beyond over long distances. The metal body provides additional grounding and shielding benefits in electrically noisy environments.

For complete CCTV tools and accessories, visit Threeways Gadget Hub. Browse our desktop computers to support your DVR or NVR system.

Technical Specifications

General

• Model: Metal BNC Connector (Crimp/Compression)
• Type: Male BNC (Bayonet Neill–Concelman)
• Impedance: 75 Ω
• Body Material: Zinc alloy or nickel-plated brass
• Contact Material: Gold-plated center pin
• Connector Style: Straight

Performance

• Frequency Range: DC to 3 GHz (suitable for HD video)
• Insertion Loss: ≤ 0.2 dB @ 1 GHz
• Return Loss: ≥ 20 dB
• Insulation Resistance: ≥ 5000 MΩ
• Dielectric Withstanding Voltage: 1500 V AC

Installation

• Cable Compatibility: RG59, RG6, RG11 (with appropriate crimp die)
• Termination Method: Crimp (hex/ferrule) or Compression
• Tool Required: Standard BNC crimp tool or compression tool
• Durability: 500+ mating cycles

Environmental

• Operating Temperature: -40°C to 85°C
• Corrosion Resistance: Nickel plating or zinc alloy body

Check compatible cabling and tools in our monitors collection.

Trust-Building with Warranty and Support

Threeways Gadget Hub supplies premium metal BNC connectors trusted by professional installers throughout Kenya. These connectors meet international standards for mechanical durability, signal quality, and long-term performance. They provide consistent results in demanding real-world installations. Our team offers expert guidance on proper crimping/compression techniques, cable preparation, and testing. We ensure fast nationwide delivery. Contact us for dedicated support. Choose this metal BNC connector for secure, interference-free, and professional-grade video connections.
