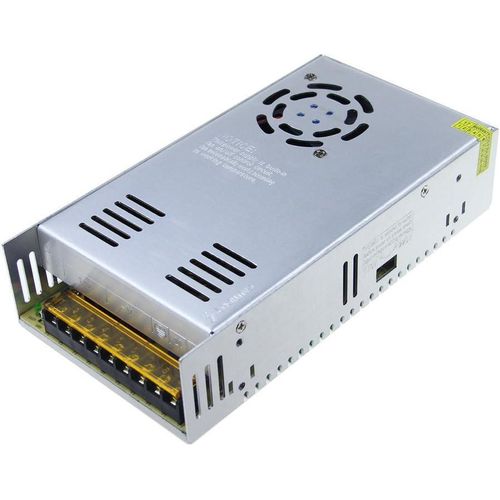

12V 30A Power Supply Open

12V 30A Power Supply Open provides high-capacity stable power for large-scale CCTV systems. This open-frame switching adapter delivers 360W total output. Therefore, professionals in Kenya select it for powering extensive surveillance networks reliably.

Versatile Use Cases and Broad Compatibility for 12V 30A Power Supply Open

This power supply excels in commercial CCTV installations. Installers connect it to 20 or more cameras simultaneously. Additionally, it powers multiple DVRs, NVRs, and PTZ units effectively. Moreover, it supports analog, AHD, HD-TVI, and IP camera setups seamlessly.

Furthermore, the open design ensures superior heat dissipation. For example, it operates continuously in warm environments without overheating. Similarly, it integrates with power distribution boards for organized wiring. Consequently, large buildings achieve uninterrupted video monitoring.

In enterprise projects, it handles high-power IR illuminators. Likewise, it suits centralized security rooms. The robust current capacity prevents voltage drops over long distances. Thus, cameras deliver clear footage consistently.

Moreover, the unit works with standard screw terminals. As a result, connections remain secure during installation. Finally, compatibility with 12V DC devices makes it ideal for professional applications.

For a wide selection of CCTV equipment, visit the Threeways Gadget Hub main site.

Detailed Technical Specifications for 12V 30A Power Supply Open

General Type: Open-frame switching power supply Output Voltage: 12V DC Output Current: 30A (360W maximum) Input Voltage: 100-240V AC, 50/60Hz

Output Characteristics Ripple & Noise: ≤ 150mV Voltage Accuracy: ±5% Efficiency: ≥ 85% Adjustment Range: ±10% typical

Protection Features Overload Protection: Yes (hiccup mode) Over Voltage Protection: Yes Short Circuit Protection: Yes Over Temperature Protection: Yes

Physical Design: Open frame (large for enhanced cooling) Dimensions: Approximately 215 × 115 × 50 mm Mounting: Screw holes for secure installation Connectors: Screw terminals for input/output Cooling: Natural convection (fan optional in some models)

Compliance Standards: CE, RoHS compliant Safety: Meets basic electrical safety requirements

Environmental Operating Temperature: -10°C to 60°C Storage Temperature: -20°C to 80°C Humidity: 20% to 90% non-condensing

The high-efficiency switching design reduces energy waste. Therefore, it runs cooler under load. For reliable power standards, refer to TIA Online.

Why Professionals Trust 12V 30A Power Supply Open

This power supply offers exceptional capacity. For instance, it supports extensive camera arrays without strain. Additionally, multiple protections safeguard equipment. Consequently, systems experience minimal interruptions.

Moreover, the open large frame maximizes airflow. Thus, it maintains performance in hot Kenyan conditions. Users appreciate its durability at an affordable price. As a result, it becomes essential for major CCTV deployments.

Furthermore, screw terminals provide flexible and secure wiring. Therefore, technicians complete installations quickly. The design accommodates system growth. In addition, it fits inside custom enclosures easily.

Explore matching CCTV accessories in the monitors category at Threeways Gadget Hub.

We ensure quality with every unit. 12V 30A Power Supply Open includes manufacturer assurance. Moreover, our Nairobi team delivers prompt expert support. Consequently, customers receive guidance on setup and compatibility. Enjoy dependable after-sales service.

This high-power adapter meets demanding surveillance requirements. Therefore, invest in it for reliable multi-device performance.

• Delivers stable 12V 30A output
• Supports 20+ cameras or devices
• Built-in overload and short-circuit protection
• Open frame for excellent heat dissipation
• Wide 100-240V AC input range
